Service Body
Central locking, door ajar alarm and interior lighting package option.
Can also integrate with the vehicle alarm.
External Gutters allow for maximised door width access
Door seal rubbers fitted to doors to keep them up out of the way of incidental damage when accessing the body
Roof rack ready - fully braced back to chassis
Large gutters to shed large volumes of water quickly
Two stage rotary latching - door catches like a car door, eliminating the possibility of a door flying open in transit
3.0mm marine grade, aircraft tensile aluminium. Constructed using structural aircraft fasteners and fully welded seams
Heavy Duty Gas struts - won't bend if someone inadvertently leans on it
Flush floor for ease of access
Automotive non-slip flooring
Optional underbody drawer - smart use of space between chassis rails
Integration of safety systems - eg Blind spot sensors, reverse sensors and cameras
Underbody storage boxes - option of angled or standard
Comes with internal shelving supports as standard

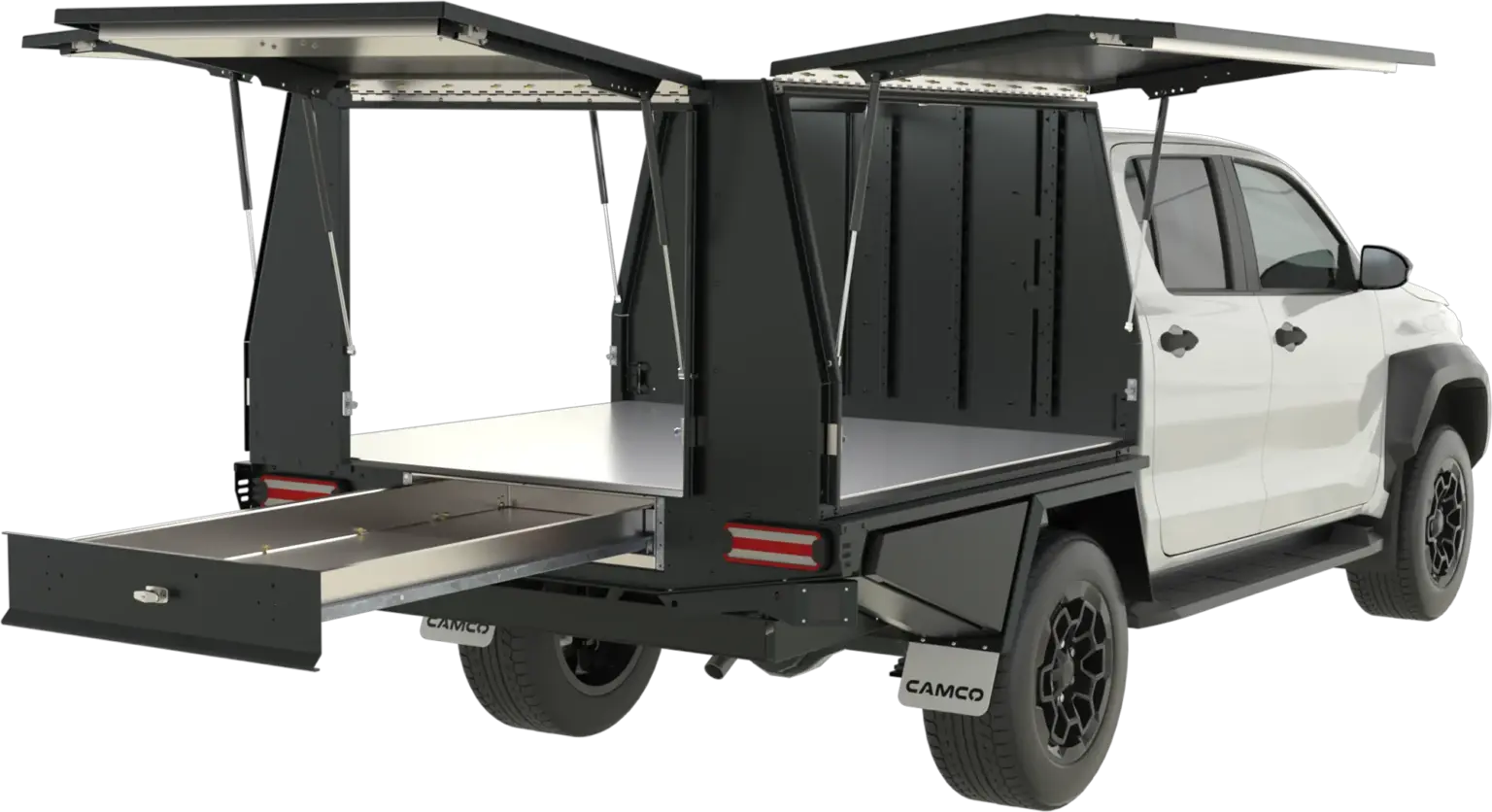

Maxideck Service Body
Built for serious operators who demand uncompromising performance.
A fully integrated service body that maximises payload, security, and usability while minimising weight.
Ideal for: Operators needing large-capacity mobile workshops and secure equipment storage such as utility fleets, line-service crews, and trades.
Dimensions
- All: 960 high, 1860 wide.
- Double Cab: 1700mm long.
- Extra Cab: 2000mm long.
- Single Cab: 2460mm long.
Highlights
- 3 mm aviation-grade aluminium monocoque construction.
- Fully braced doors designed to withstand high-wind environments.
- Flush-floor access through all openings.
- Integrated internal tie-points for easy load restraint.
- Compatible with Camco cantilever roof trays – no cab mounting required.
- Supports up to 600 kg static / 200 kg dynamic roof load.
- Central locking with auto relock function.
- Durable ply-lined deck and rubber-matted interior as standard.
- Standard with gullwing doors.
Starting from $17,290 + GST
BUILT FROM THE CHASSIS UP.
READY FOR ANYTHING.
Engineered from the chassis up and purpose-built in New Zealand, the Camco Maxideck delivers serious strength, seamless functionality, and class-leading durability.
Designed for those who demand more from their vehicle, Maxideck combines rugged capability with intelligent design to create a service body that performs day in, day out – whether you’re on the tools, managing a fleet, or heading off the beaten track.
Unlike traditional tray and canopy combinations, Maxideck is engineered as a single structural unit that bolts directly to the vehicle chassis.
This integrated design transfers load efficiently through the body, creating exceptional strength, reduced flex, and long-term reliability in demanding conditions.
The result is a lighter, stronger, and more durable platform built to handle the realities of New Zealand roads, worksites, and adventure destinations.
Key engineering highlights
-
Chassis-integrated strength
Fully welded aluminium monocoque design transfers load directly into the chassis. -
Flush floor access
Flat, seamless entry across all doors for safer, faster loading. -
Premium standard inclusions
Integrated tie-downs, durable ply decking, and heavy-duty non-slip flooring. -
Refined exterior upgrades
Flared mudguards and lockable underbody toolboxes enhance both form and function. -
Tailored to every application
Comprehensive accessory range for utilities, fleets, and recreation
Door Options

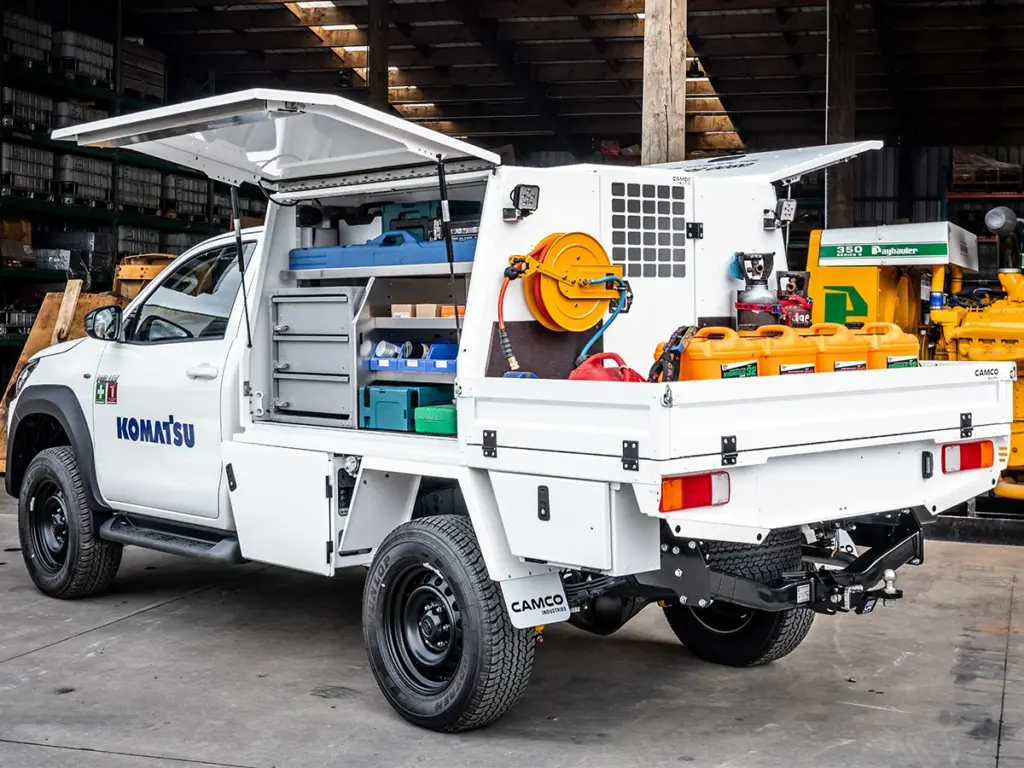

Gullwing® Side Door
The Gullwing® Side Door is the original side door and has proven itself time and time again.
Fitted with internal door braces, full-length hinges and a single paddle latch.

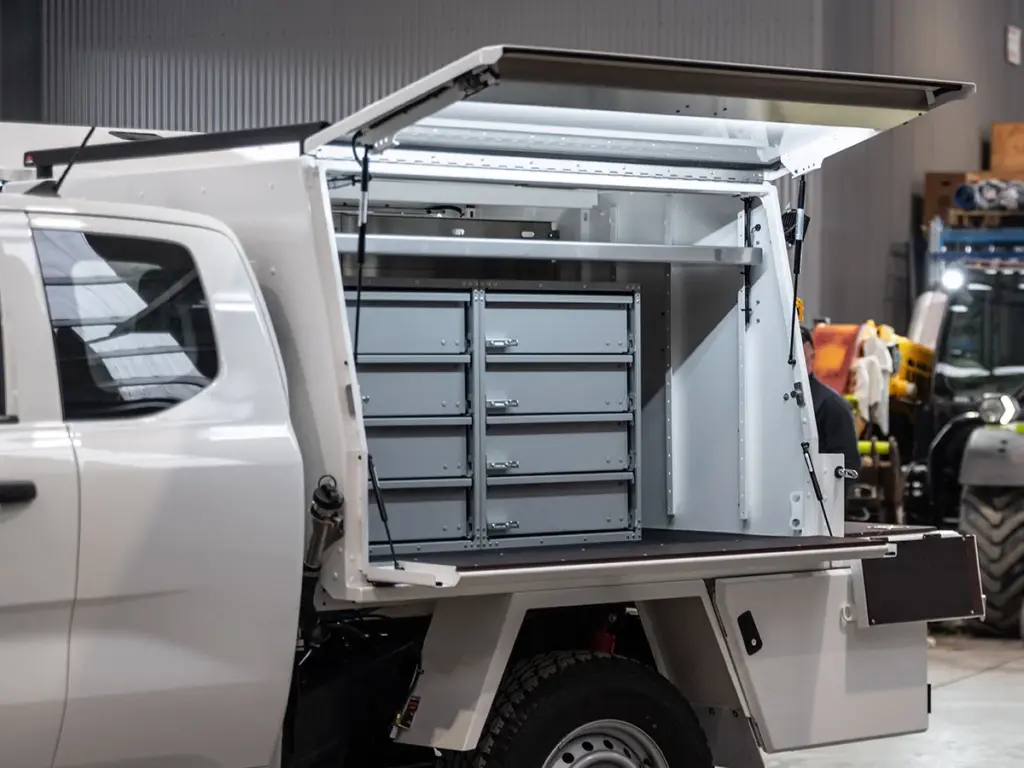

Split Side Door
The Split Side Door was developed to suit industry requirements for an accessible work bench. Fitted with internal door braces, full-length hinges on the top door and a single paddle latch. The top door latches over the lower door, removing the need for additional locks.
Upper section creates a sheltered workbench while the lower door supports up to 50 kg SWL. Perfect for field servicing.

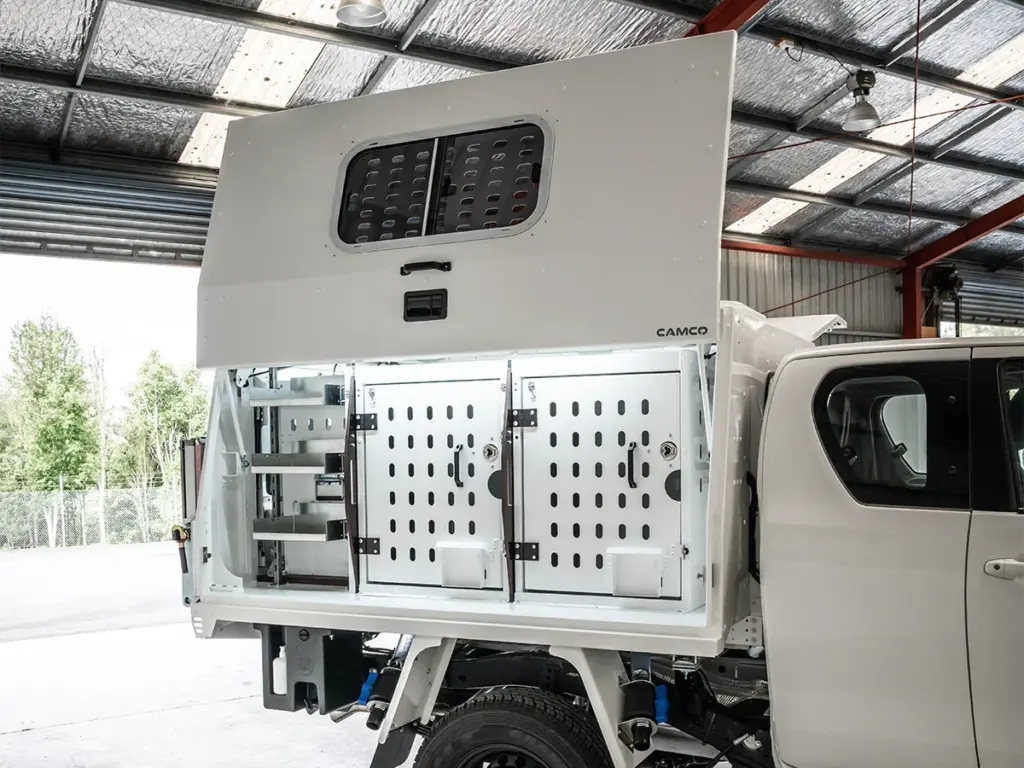

Vertisafe® Side Door
Vertical lift design for roadside safety and tight spaces. Operable within confined zones and protects workers from passing traffic. Fitted with internal door braces, vertical lift mechanism and a single paddle latch.
